Digitimes Insight: Japan represents over 30% of IGBT production, slight impact from quake
Sophia Chen, DIGITIMES Research, Taipei [Friday 18 March 2011]

The impact the Japan earthquake has on photovoltaic (PV) inverters will be determined by the supply of insulated gate bipolar transistor (IGBT) since Japan represents 30% of global production output. An IGBT shortage caused inverter shipments delays in 2010, and the earthquake has brought supply of the key component back to the spotlight. The plants of Japan-based IGBT makers Mitsubishi Electric, Fuji Electric and Toshiba are not located near the disaster areas and are unaffected by power outages at the moment. Digitimes Research believes the inverter upstream supply chain should see only slight disruption.

Since Japan makes up a very small percentage of inverter production worldwide and its shipments are typically distributed domestically, global impact should be minimal. Most Japan-based inverters companies are unaffected. Only Meiden's facility in Shizuoka Prefecture is experiencing aftershocks and power blackouts.

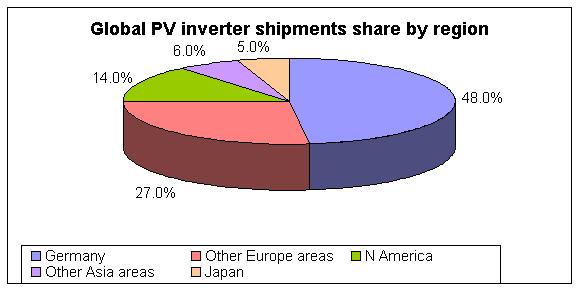

Japan shipped 980MW of inverters to account for a 5% global market share in 2010. Germany is the largest inverter maker with 48%, followed by the US at 14%. The rest of Europe represents a 27% and Asia (excluding Japan) about 6%.

Maiden's inverter facility is located in Shizuoko Prefecture. Though no serious damage has been reported, it is part of Tokyo Electric Power Company's power brownout areas and future production operations could be impacted. On March 15, a 6.0-level earthquake hit the prefecture, and aftershocks are likely. Other major inverter plants are located away from the disaster areas.

The concern, however, should be on the impact on IGBT and MOSFET supplies. IGBT represents 13% of overall inverter cost and 66% of the cost of power electronic components.

Infineon and Semicron Electric have the highest market share of the Inverter-use IGBT market, and their products are adopted by most Europe and US-based inverter makers. Taiwan-based inverter companies mainly use IGBT from the US and Europe as well.

Japan's Mitsubishi, Fuji and Toshiba mostly manufacture IGBT for home appliances. Their share of the inverter sector is about 30%. Taiwan-based inverter makers have diversified IGBT supply channels, and since most have inventory on hand, no impact from the earthquake is expected.

Toshiba mainly produces IGBT overseas in China, Malaysia and Thailand. Moreover, the plants of Mitsubishi and Fuji are located far way from disaster areas and are currently unaffected by the earthquake.

PV inverter cost breakdown



PCB and other components






Power electronic components


Magnetic components




Source: Yole, Nikkei, compiled by Digitimes, March 2011

Cost breakdown of power electronic components in PV inverters





Coupler and others


Logic IC


Analog IC


Micro components


Optical semiconductor


Source: Yole, Nikkei, compiled by Digitimes, March 2011

Global PV inverter-use IGBT makers



Supply status



Adopted by most US and Europe inverter makers

Taiwan inverter makers mainly adopt Europe- and US-made IGBT





International Rectifier




Account for 30% of global IGBT market

Some Tawan-based inverter makers adopt their IGBT. Since they have inventory on hand, little impact is expected





Source: Companies, compiled by Digitimes, March 2011

Source: Companies, compiled by Digitimes, March 2011

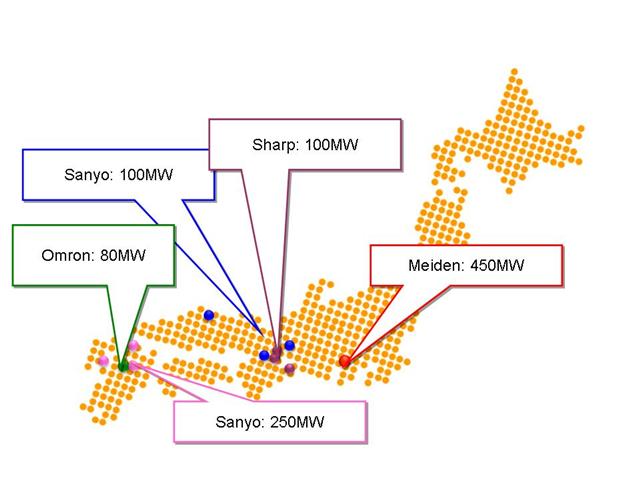

Japan's PV inverter plants and capacities

pv inverter

Source: Digitimes Research, March 2011

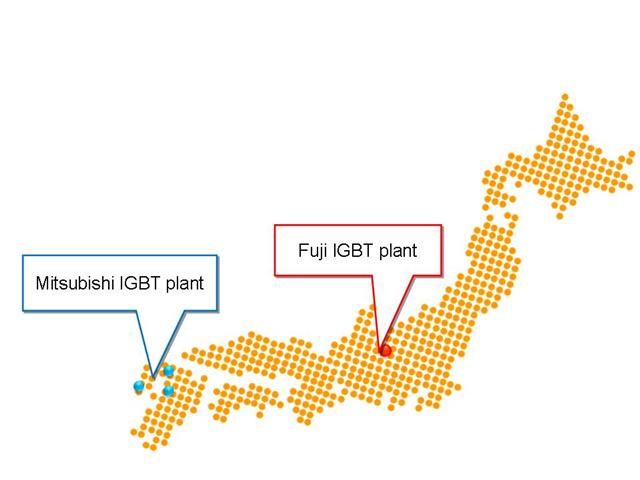

Japan's IGBT plants


Source: Digitimes Research, March 2011
